Grid relief from smart buildings
- By Vincent Minier and Candela Utrilla-Bustamante
- 13 Apr 2026
- 4 min read
Episode 02 - Grid Relief From Smart Buildings
In July 2024, a voltage fluctuation rippled through Northern Virginia’s “Data Center Alley” and knocked 60 data centers offline simultaneously. Gone in an instant: 1,500 MW of load, roughly equal to a mid-sized city. The grid operator, PJM, scrambled to stabilize frequency. It was a 10-second glimpse of a problem that’s only getting worse.
Electricity demand is surging on both sides of the Atlantic, driven by AI data centers, EV adoption, and the electrification of heating and industry. U.S. winter peak load could climb 21.5% over the next decade. The EU wants electricity to reach 50% of its final energy mix by 2040. But the grid wasn’t built for this, and new infrastructure takes years to permit and construct.
The standard playbook offers two bad options: wait years for new connections, or curtail the very loads (data centers, factories) driving economic growth. A new report from the Schneider Electric Research Institute proposes a third path. The report’s case is simple: smarter buildings can free up grid capacity faster than new infrastructure can.
- Up to 60%Power headroom recovery at site level, depending on archetype and regional tariff structure
- Up to 35%Energy headroom recovery from rooftop PV paired with stationary battery storage
- 75%+Of 65 modelled use cases show microgrid payback under 10 years
The study models 5 commercial building types (hospital, large office, school, small hotel, strip mall) across 13 regions, including 3 U.S. zones. Each building is equipped with heat pumps, a building management system, and EV charging stations. Included in the modeling are microgrids (rooftop solar plus a stationary battery) optimized to cut electricity bills under local dynamic tariffs.
The core question: when building owners invest in these systems for their own financial benefit, how much grid capacity do they hand back to the system operator, for free?
The first finding is about peak power. Direct (uncontrolled) EV charging pushes building peaks to 150% of the grid connection limit at 2025 adoption rates, and as high as 300% by 2035. Smart charging alone brings peaks back within the limit. Add a microgrid, and the stationary battery controller actively recovers headroom below that limit in over 55% of cases.
Tariff structure is the decisive variable. In regions where electricity bills include a demand charge or subscribed power penalty (the U.S., Canada, France, Spain, India), the battery controller has a direct financial incentive to shave peaks. Recovery in those regions typically runs 20–40%, reaching 60% for a French secondary school with a high roof-to-floor ratio and strong solar conditions.
Where tariffs lack a power component, headroom recovery stays minimal. The lesson: price signals work.
The second finding looks at total energy. Rooftop PV cuts grid imports through self-consumption; the battery stores excess solar for later. Across the 65 cases, energy headroom recovery ranges from 5% to 35% of site capacity.
Buildings with generous roof-to-floor ratios (schools, strip malls, hotels) recover 7–35%, averaging 22%. Multi-story offices and hospitals, with cramped rooftops relative to their floor area, land between 5% and 10%. Geography matters too: India and Australia, with high solar irradiance and high baseline load factors, sit at the top. Denmark and Canada, constrained by low sunlight, sit at the bottom.
For grid operators, every percentage point of energy headroom recovered is a percentage point of existing infrastructure that can serve new customers, without pouring concrete or stringing wire.
Nearly all 65 use cases clear the investor’s profitability hurdle. Over 50% of microgrid installations pay back in 5 to 10 years. Another 25% pay back in under 5. The same microgrid sized for 2025 EV penetration continues to perform as adoption grows through 2035.
The strongest returns show up in the U.S. West, Canada, and the UK. The weakest (though still viable) appear in Denmark, the U.S. South, and Norway. Smart charging alone, when measured against the electrical distribution upgrades it avoids, pays back in under a year for most building types.
A modeled small hotel in the USA West region illustrates how these layers stack. With uncontrolled EV charging at 2035 penetration rates, the site’s peak demand blows past its grid connection limit, nearly doubling it. Smart charging pulls the peak back within the limit. Then the microgrid, a rooftop PV array paired with a stationary battery optimized to cut the owner’s electricity bill, pushes peak import power well below the grid limit, freeing up roughly 27% of the site’s power capacity for the grid operator to allocate elsewhere.
The energy picture tells the same story. PV self-consumption and battery dispatch flatten the load curve, recovering additional energy headroom and reducing the volume of electricity the building pulls from the grid during high-demand hours. The investment pays back in 3 years. The hotel owner gets a lower bill and resilience. The grid operator gets freed-up capacity at zero cost. Nobody had to build anything upstream.

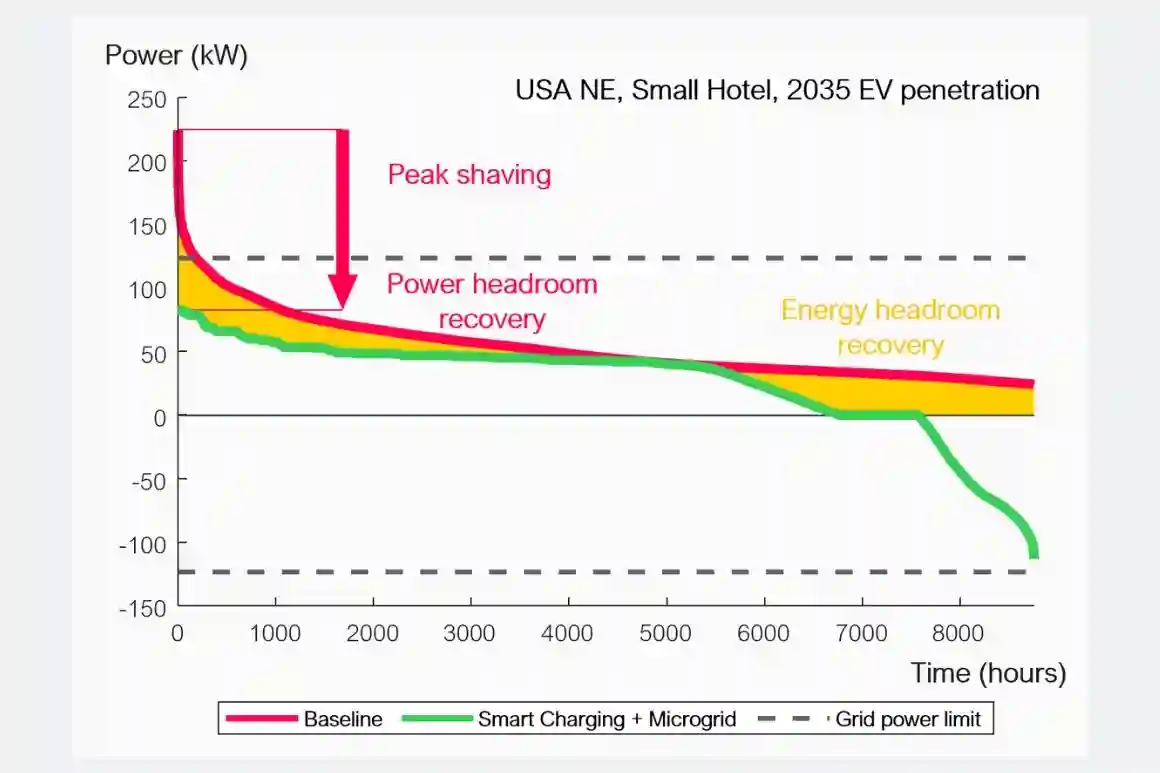

Exhibit 1. Illustrative load duration curves for a Small Hotel in USA NE (2035 EV penetration).
The report identifies three regulatory moves that would scale these benefits:
Implement dynamic tariffs that include demand charges or power subscriptions
Because the tariff structure is the single biggest determinant of whether microgrid controllers shave peaks.
Open flexibility markets to demand-side resources through aggregators
So building-level capacity can participate in system balancing.
Mandate connectivity for demand-side equipment and management systems
Since flexibility that isn't visible to the grid operator doesn't count.
None of these require new generation capacity or new transmission lines. They require smarter rules for assets that already exist.
The grid bottleneck is real. But the capacity to relieve it is sitting on rooftops and inside switchboards, waiting to be activated. When building owners invest in microgrids to cut their own bills, they hand back power and energy headroom to the system at zero marginal cost. A lot of usable grid capacity is already sitting inside buildings, on rooftops, and behind the meter.
For a deeper look, download the full report Grid Relief from Smart Buildings to see how 65 building archetypes across 13 regions were modeled, and what the findings reveal about unlocking grid capacity through smart charging, rooftop solar, and stationary storage.
